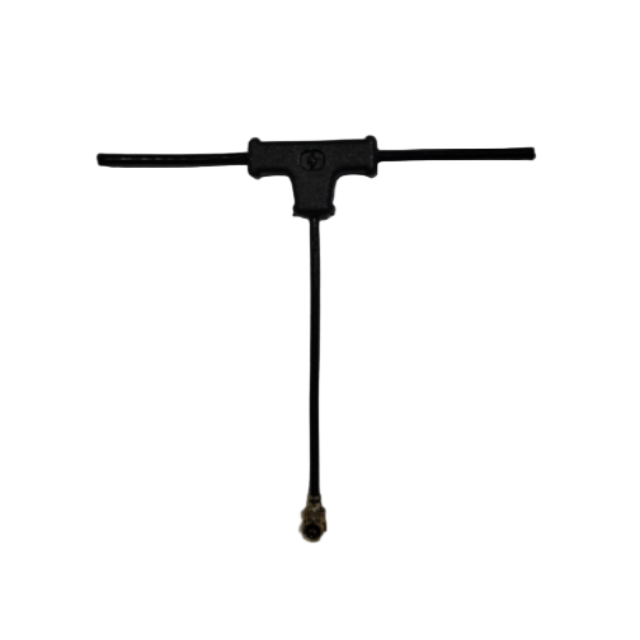

GL-DY025
Asialeren
8517710000
100pc
accepted
10000PC/days
| Quantity: | |
|---|---|
| PDF Export | |
Model | GL-DY025 |
Main Technical Specifications | |
Frequency Range（MHz） | 2400-2500 |
Bandwidth（MHz） | 100 |
VSWR | ≤2.0 |
Gain（dBi） | 2 |
Max Input power（W） | 50 |
Input Impedance（Ω） | 50 |
Polarization Type | Vertical |
Antenna Length（mm） | 56 |
Connector Type | IPEX |
Cable specifications | 1.13 |
Line Length（mm） | 120 |
Operation temperature | -20~50C° |
Store temperature | -20~55C° |
Product Introduction
1.Precise Frequency Optimization, Designed Specifically for the 2.4GHz Band
Precise Coverage of the 2400-2500MHz Band: 100MHz bandwidth optimized for WiFi, Bluetooth, and ZigBee protocols, ensuring stable performance in the congested 2.4GHz spectrum.
2. Compact Design for Space Saving and Easy Installation: Only 56mm in length, with IPEX connectors and 120mm cables, making it ideal for space-constrained embedded devices. Quick installation onto PCBs requires no additional tools.
3. Robust Electrical Performance for Guaranteed Signal Transmission Quality: VSWR≤2.0, 50Ω standard impedance matching, maximum 50W power input, maintaining stable signal transmission efficiency even under high loads.
4. Vertical Polarization and Omnidirectional Coverage for Enhanced Connection Reliability: 2dBi gain combined with vertical polarization provides a balanced radiation pattern, effectively reducing signal dead zones and improving connection stability in complex environments.
5. Wide operating temperature range, adaptable to various environmental conditions
Operating temperature -20°C to 50°C, storage temperature -20°C to 55°C, capable of meeting the environmental requirements of most indoor and outdoor applications.
Application Scenarios
Wireless Routers and Gateways: Used as a built-in antenna in home/office wireless routers to enhance 2.4GHz signal coverage.
IoT Terminal Devices: Embedded in low-power IoT devices such as smart home sensors and wireless remote controls.
Industrial Wireless Modules: Integrated into the PCB boards of industrial controllers, data acquisition devices, etc.
Portable Smart Devices: Used in mobile devices requiring compact antennas, such as handheld terminals and POS machines.
Video Transmission Equipment: Wireless cameras and video transmission modules suitable for the 2.4GHz band.
FAQ
Q: What is the frequency range of this antenna?
A: It operates in the 2400-2500MHz range, ideal for 2.4GHz WiFi, Bluetooth, and ZigBee applications.
Q: What connector type does it use?
A: It features an IPEX connector, commonly used for compact embedded applications.
Q: What is the cable length?
A: The antenna comes with a 120mm cable, providing flexibility for internal device layout.
Q: Is this antenna suitable for outdoor use?
A: While it operates from -20°C to... 50°C, it's primarily designed for indoor applications unless properly weather-protected.
Q:What devices is this antenna compatible with?
A: Compatible with any 2.4GHz wireless device featuring an IPEX connector, including WiFi routers, IoT sensors and industrial controllers.
Q:How do I install this patch antenna?
A: Simply connect the IPEX connector to your device's corresponding port and secure the antenna to a flat surface using adhesive or screws.
Q:What is the maximum power handling capacity?
A: It can handle up to 50W maximum input power, suitable for most commercial and industrial applications.
