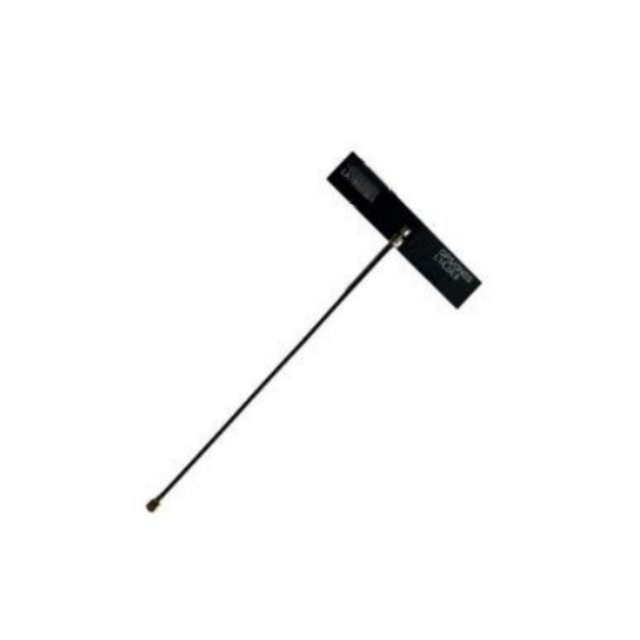

GL185
Asialeren
8517710000
100pc
Accepted
10000pc/day
| Quantity: | |
|---|---|
| PDF Export | |
Part Number | GL185 | ||
Frequency (MHz) | 1176 ±10 | 1227 ±10 | 1559-1610 |
S11 (Return Loss) (dB) | < -8.0 | < -9.0 | < -10.0 |
VSWR | < 2.4 | < 2.1 | < 2.0 |
Average Efficiency | > 47% | > 58% | > 50% |
Peak Gain (dBi) | -0.7 | 1.0 | 1.2 |
Polarization | Linear | ||
Radiation Pattern | Omni-directional | ||
Antenna Type | Dipole | ||
Impedance | 50 Ω | ||
RF Connector Type | Compatible MHF 1 Plug | ||
Cable Diameter | Ø1.13mm | ||
Power Rating | 5 Watts | ||
Operation Temperature | -40℃ to +85℃ | ||
Storage Temperature | -40℃ to +85℃ | ||
Product Introduction
1. Full-Band High-Precision Positioning Support
Fully supports multiple satellite navigation systems including GPS L1/L2/L5, GALILEO E1/E5, GLONASS L1/L5, and BeiDou B1/B2, ensuring fast and accurate positioning globally, especially suitable for professional fields with extremely high precision requirements.
2. Flexible Circuit Board Design for Easy Integration
Utilizing ultra-thin FPC material (only 0.1mm thick), it possesses excellent flexibility, easily fitting into various curved surfaces or irregular structures, greatly improving integration convenience in compact devices.
3. Stable Performance, Unaffected by Environmental Factors
The unique balanced dipole design ensures its performance is unaffected by changes in ground plane size and cable length, maintaining consistent efficiency (average efficiency >47%) and radiation mode even in different installation environments.
4. Omnidirectional Radiation and Low Gain, Certification Friendly
Provides an omnidirectional radiation mode, ensuring no directional dead zones in signal reception; simultaneously, optimized low-gain characteristics help the device easily pass radio type approval certification, shortening product launch time.
5. Comprehensive Configuration and Customization Services
Offers a variety of cable lengths (100mm-250mm) and MHF1/MHF-4L compatible connector options, and can be customized to meet specific installation requirements for different application scenarios.
Application Scenarios
* Vehicle and Asset Trackers: Embedded in portable tracking devices, providing continuous location data for the logistics and transportation industries.
* Precision Agricultural Machinery: Installed on agricultural drones or automated tractors for precise management and operation of farmland.
* Outdoor Navigation and Handheld Devices: Used in handheld GPS navigators, walkie-talkies, etc., providing reliable directional guidance for outdoor activities.
* Maritime and Drone Satellite Communication: As part of a satellite communication module, providing stable satellite signal reception for ships or drones.
* Industrial-Grade Surveillance Systems: Integrated into security monitoring equipment to ensure accurate location information for the equipment itself.
FAQ
Q: What GNSS systems does this antenna support?
A: It supports all major systems including GPS (L1, L2, L5), GALILEO (E1, E5), GLONASS (L1, L5), and BEIDOU (B1, B2).
Q: Is the antenna flexible and easy to install?
A: Yes, it's a Flexible Printed Circuit antenna, only 0.1mm thick, which can be bent and adhered to most surfaces for easy integration.
Q: What is the typical efficiency of this antenna?
A: The average efficiency exceeds 47% across its operating bands (1166-1610 MHz), with some bands achieving over 58%.
Q: What connectors are available?
A: It is available with compatible MHF1 or MHF-4L plug connectors, suitable for standard RF interfaces.
Q: Can I request a custom cable length?
A: Yes, Leankon offers customization for cable length, color, and connector type. Please contact Info@leankon.com for details.
Q: How does the antenna perform near metal surfaces?
A: For optimal performance, maintain the recommended distance from large metal structures (e.g., >5mm to 30mm as per the guide).
Q: What is the operating temperature range?
A: It can operate reliably in temperatures from -40℃ to +85℃, suitable for harsh environments.
