English
GL5800-05
Asialeren
8517710000
100pc
Accepted
10000pc/day
| Quantity: | |
|---|---|
| PDF Export | |

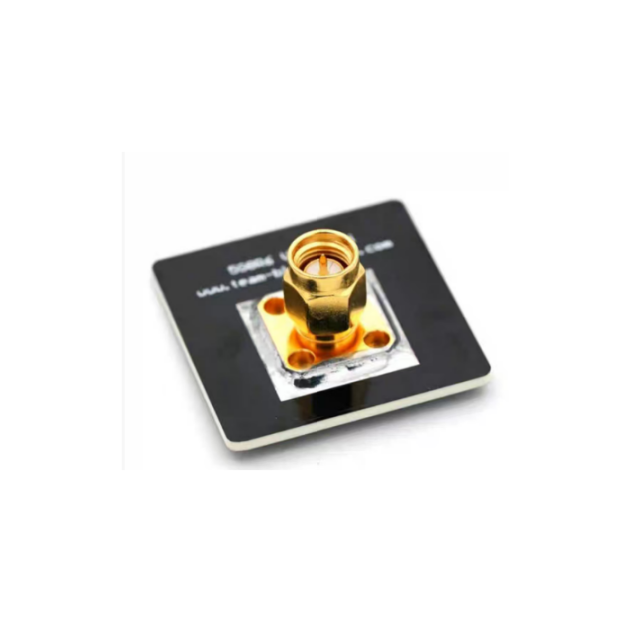

5.8G Antenna | |
GL5800-05 | |
Electrical Index | |
Frequency-MHz | 5700-5900 |
VSWR | ＜1.5 |
Nominal Impedance-Ω | 50 |
Polarization | RHCP |
Gain-dBi | 5 |
Beamwidth | 110 |
Mechanical Index | |
Cable Length | --- |
Connector | SMA male |
Antenna Dimension-mm | 35*35 |
Installation Way | --- |
Vibration | 10 to 55Hz with 1.5mm amplitude 2hours |
Environmentally Friendly | ROHS Compliant |
Temperature-℃ | -40～＋85 |
Humidity-﹪ | 5～95 |
High Gain & Wide Beamwidth
Offers 5dBi gain with a 110° beamwidth, providing excellent signal coverage and stability for FPV video reception.
RHCP Polarization
Features Right-Hand Circular Polarization (RHCP), which reduces multi-path interference and improves video clarity in dynamic flight environments.
Optimized for FPV Systems
Designed to work seamlessly with Fatshark Dominator 5.8GHz receivers, ensuring reliable performance for daily flights and on-site racing.
Durable & Lightweight Design
More robust and lighter than traditional Cloverleaf/Skew-Planar antennas, making it ideal for competitive racing and frequent use.
Extended Operational Range
Capable of achieving a comfortable range of 1.5km with a 200mW transmitter (equivalent to 3–4km under standard metrics), outperforming many existing antenna setups.
FPV drone racing and freestyle flying
Video receiver systems for Fatshark Dominator goggles
Long-range drone video transmission
DIY FPV and UAV projects
Lightweight and compact receiver setups
Q: What is the frequency range of this antenna?
A: It operates in the 5700–5900 MHz range, perfect for 5.8GHz FPV systems.
Q: What type of polarization does it use?
A: It uses RHCP (Right-Hand Circular Polarization) for better signal integrity.
Q: Is this antenna compatible with Fatshark Dominator goggles?
A: Yes, it is designed to be used with Fatshark Dominator 5.8GHz receivers.
Q: What is the gain and beamwidth of this antenna?
A: The gain is 5dBi with a 110° beamwidth.
Q: What is the typical range of this antenna?
A: Under typical conditions with a 200mW transmitter, it can achieve about 1.5km (equivalent to 3–4km in standard marketing terms).
Q: What connector does it use?
A: It comes with an SMA male connector.
Q: Is it durable for outdoor and racing use?
A: Yes, it is built to be more durable and lighter than many competing antennas, and it operates in temperatures from -40°C to +85°C.
